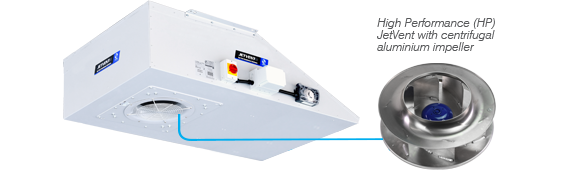

JetVent Digital EC Induction Series
Description
The JIU-CPCEC series of JetVent fans feature advanced digital EC motor technology with integrated speed control that
eliminates the need for external VSDs, current overloads and motor phase protection. This Digital EC system will vary the operating speed of the impulse fan units and therefore the
ventilation rate, according to the CO or NOx pollutant levels
in the space.
The series features ComLink, an innovative digital
communication system between JetVent fans, sensors and
the pre-configured Digital Aviator Max Controller. The result
is a very simple control wiring scheme that is easy to install
and easy to commission while providing the ultimate in energy
efficiency and system monitoring.
Typical Application
Enclosed or semi-enclosed spaces that contain harmful vehicle exhaust pollutants. These spaces include commercial and residential car parks, loading bays, drive through facilities and indoor go-kart tracks. Can also increase cross-flow ventilation in open car parks.
Features
- An energy efficient ventilation system that provides the ventilation rate according to the CO or NOx pollutant levels in the space.
- JetVent's unique ComLink system provides a simple control wiring scheme that is easy to install and easy to commission
- EC motor features reverse polarity protection, locked rotor protection and soft start.
- EC motor technology eliminates the need for external VSDs, current overloads and motor phase protection
- Highly efficient, aerodynamically designed internal flow elements
- Compact low profile design makes it suitable for applications with low ceiling heights
- Fantech supplied CO/NOx sensors and integrated smoke detectors require no additional power supply
Integrated Smoke Detection Kit
Digital EC JetVent fans can be ordered with a factory fitted
and fully integrated smoke detection kit that ensures a simplified installation and reliable operation. This innovative feature allows the Fantech Aviator Max intelligent car park controller or BMS to monitor for smoke and respond accordingly.
Single Phase Models
Product Code | Diameter [mm] | Speed [rps] | kW | Amps | Avg. dB(A)@ 3m | Thrust, N |
---|
| 315 | 35 | 0.56 | 2.8 | 57 | 0 |
Three Phase Models
Product Code | Diameter [mm] | Speed [rps] | kW | Amps | Avg. dB(A)@ 3m | Thrust, N |
---|
| 450 | 19 | 1.7 | 2.9 | 57 | 1.60 |
| 450 | 22 | 1.7 | 2.9 | 57 | 1.70 |
| 630 | 20 | 3 | 4.8 | 57 | 3 |
| 450 | 23 | 1.1 | 1.8 | 60 | 0 |
