FSU Series 4 - Mixed Flow Fans

FSU Series 4 - Mixed Flow Fans

Description

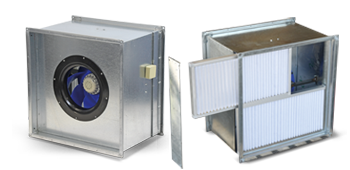

The Inline Filtered Supply Unit has been designed to provide filtered outside air to a range of applications where direct fresh air intake is not possible or practical.
Typical Application
Filtered supply air into areas such as switch rooms, data rooms, commercial kitchens, shopping centres, factories and warehouses.
Features
  • Robust, yet lightweight galvanised steel construction
  • Mixed-flow impeller with high performance blade geometry
  • Pure-V washable G4 filters on the fan discharge side that can
  • be easily accessed via a removable side panel
  • Choice of external rotor motors available in single phase
  • and 3-phase configurations
  • Supplied with TDF flanges as standard for inline mounting or
  • installed with an external grille for flush to wall mounting

Single Phase Models

Product CodeDiameter
[mm]
Speed
[rps]
kWAmpsAvg.
dB(A)
@ 3m
Max.Pressure
[Pa] -Recom
Max.Volume
[m3/sec]

FSE314ER

31023  0.22 1.1 211 0.70

FSE354ER

35023  0.37 1.85 257 1

FSE404ER

40021  0.58 2.6 306 1.32

FSE454ER

45023  1.1 5.2 427 2.10

FSE504ER

50022  1.65 7.4 466 2.10

FSE316ER

31015  0.09 0.48 98 0.46

FSE356ER

35015  0.12 0.56 118 0.66

FSE406ER

40016  0.28 1.35 154 1

FSE456ER

45015  0.37 1.75 191 1.40

FSE506ER

50015  0.54 2.5 225 1.80

FSE566ER

56015  0.84 4.2 272 2.50

Three Phase Models

Product CodeDiameter
[mm]
Speed
[rps]
kWAmpsAvg.
dB(A)
@ 3m
Max.Pressure
[Pa] -Recom
Max.Volume
[m3/sec]

FSD314ER

31023  0.21 0.5 219 0.70

FSD354ER

35023  0.33 0.68 285 1.02

FSD404ER

40022  0.54 1.2 310 1.40

FSD454ER

45023  1 1.95 420 2.20

FSD504ER

50021  1.45 2.8 478 2.10

FSD316ER

31015  0.09 0.26 97 0.46

FSD356ER

35016  0.13 0.36 126 0.68

FSD406ER

40015  0.22 0.56 144 0.98

FSD456ER

45015  0.32 0.7 173 1.40

FSD506ER

50014  0.48 0.88 223 1.75

FSD566ER

56015  0.86 2.2 289 2.60

FSD636ER

63015  1.45 3.4 354 2.79

FSD458ER

4509  0.19 0.39 58 0.78

FSD508ER

50011  0.31 0.5 119 1.30

FSD568ER

56013  0.62 1.1 202 2.20

FSD638ER

63012  0.86 1.85 214 2.79
