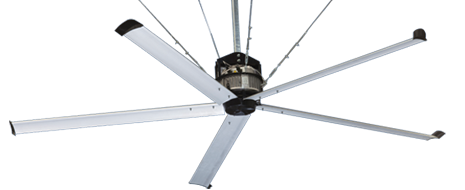

Gorilla HVLS Fans

Gorilla HVLS Fans

Description

The Gorilla range of high volume, low speed (HVLS) fans generate a gentle, slow moving airstream that covers a large area even when they are installed in a very high ceiling.

They are designed to effectively cool occupants in large commercial and industrial spaces, and eliminate the build-up of hot stagnant air by maintaining constant air movement. They can also be used in colder months to de-stratify a space by distributing warm air down from the ceiling towards floor level.

Typical Application
“Big box” retail stores, warehouses and distribution centres, health clubs and gymnasiums, basketball courts, swimming pools, religious facilities, libraries, schools and universities.
Features
  • Compact and energy efficient EC motor
  • Can be connected to a Building Management System (BMS)
  • Gearless motor ensures quiet operation
  • IP65 class protection rated motor
  • 5 high performance aerofoil shaped blades
  • Aerodynamically shaped winglets to enhance performance and reduce noise
  • Comes standard with 800mm extension tube. 400mm and 1500mm extension tube also available
  • Four stabilizing wire cables are provided standard
  • For extra safety an additional high strength security wire cable connects fan to building structure
  • Optional wall mounted touchscreen, multi-fan controller available.
  • Three Phase Models

    Product CodeDiameter
    [mm]
    Speed
    [rps]
    kWAmpsAvg.
    dB(A)
    @ 3m
    Max.Pressure
    [Pa] -Recom
    Max.Volume
    [m3/sec]

    HVLS30

    30502  0.82 2 0 28.78

    HVLS40

    40501  0.58 1.5 0 36.49

    HVLS40S

    40502  0.77 1.85 0 41.19

    HVLS50

    50501  0.9 2.2 0 57.78

    HVLS60

    60501  0.77 1.9 0 83.64

    HVLS60S

    60501  0.96 2.18 0 91.43

    HVLS70

    70501  0.63 1.53 0 93.02
