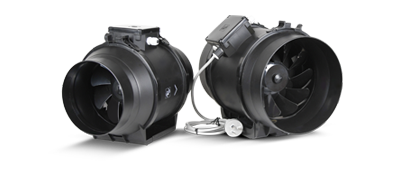

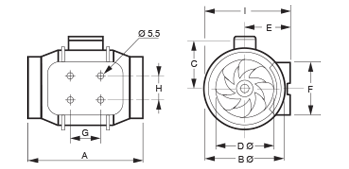

Ecowatt P Series – TD-200P-ECOWATT
Performance Curve - TD-200P-ECOWATT
Description
The fully adjustable TD-P EcoWatt inline fan, delivers an innovative
and highly efficient EC solution for both domestic and commercial
ventilation applications. The range features an on-board variable
speed controller, along with provisions for BMS integration or
external 0–10V control connections.
Suitable for mounting in any position, the range is available to suit
standard duct sizes 150 and 200mm diameter.
Features
- An energy-efficient solution with state-of-the-art, brushless EC motor technology
- Speed controllable via on-board potentiometer or external
0-10V signal
- High-performance mixed-flow impeller
- Fans can be removed for maintenance or repair without disturbing the duct system via specially designed support
brackets
- All models are designed for direct connection to standard diameter circular ducting
- Integral mounting foot makes installation simpler
- Includes plug and lead for easy and quick installation
- Suitable for both supply and exhaust air applications
- • BMS compatible
Construction
Casings are manufactured from reinforced, injection moulded,
recycled polypropylene plastic.
Impellers are made of injection-moulded plastic and are a mixedflow
design.
Motors
Type - high performance, energy efficient brushless DC motor.
Electricity supply – 220 to 240V, 50/60Hz
Integrated variable speed controller that can be adjusted locally on
the fan, or remotely via a 0-10V
Bearings - sealed for life, ball.
Rated Class B Insulation, IP44
Internal Thermal Protection
Manual-reset thermal overload protection device in accordance with
mandatory requirements for in-duct fans AS/NZS60335-2-80:2016.
Testing
Air flow tested to ISO5801:Part1, 1997
Noise tested to ISO 13347-3 2004
Suggested Specification
The In-line fans shall be of the TD-P EcoWatt Series as supplied
by Fantech Pty. Ltd.
Impellers shall be of mixed-flow design and driven by single-phase
motors with thermal overload protection.
Fans shall include integrated variable speed controller that can
be adjusted locally on the fan, along with provisions for BMS
integration or external 0–10V control connections.
They shall include an integral mounting foot and the fan body
able to be removed without disturbing connecting ductwork.
All models shall be fully tested to ISO5801: Part1, 1997 for
air flow and ISO 13347-3 2004 for noise.
Technical Data - TD-200P-ECOWATT
| Speed [rps] |
Avg. dBA @ 3m |
kWatts (Input) |
Amps |
Max.°C |
Approx. Weight [kg] |
| 38 |
– |
0.07 |
0.5 |
40 |
4.9 |
| Type |
63 |
125 |
250 |
500 |
1K |
2K |
4K |
8K |
| Inlet |
51 |
53 |
63 |
66 |
59 |
62 |
55 |
48 |
