Features
The FGR filter units are fitted with a throw-away panel dust filter.
The cassette is made of galvanised steel with rubber-sealed circular connections and the cover has quick-release latches.
Table below indicates which filter fits on specific fan models.
Average Arrestance - 85%.

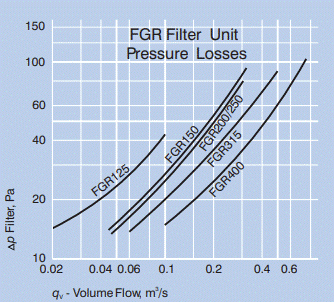

Pressure Losses

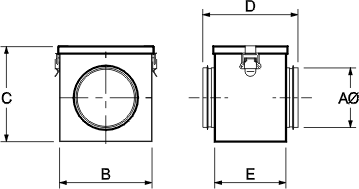

Dimensions
| Product Code | A | B | C | D | E |
|---|
| FGR125 | 125 | 200 | 200 | 220 | 122 |
| FGR150 | 150 | 200 | 200 | 220 | 122 |
| FGR200 | 200 | 245 | 245 | 230 | 122 |
| FGR250 | 250 | 295 | 295 | 240 | 122 |
| FGR315 | 315 | 345 | 345 | 240 | 122 |
| FGR400 | 400 | 448 | 448 | 240 | 150 |
