Temperature Sensors
Features
The Fantech range of temperature sensors measure ambient air
according to parameters set in the control unit.

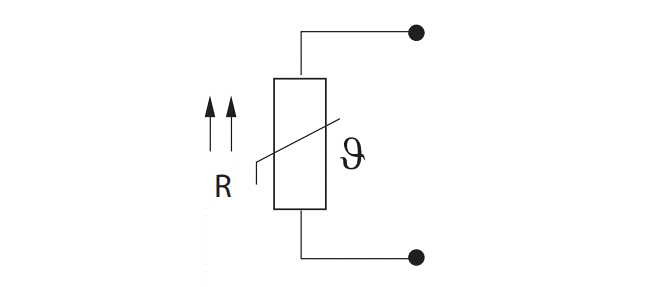

- These sensors use a silicon PTC element that changes its
resistance depending on the ambient temperature
- All TF temperature sensors are passive sensors, so they do not require power
- TFR / TFR-E: Room sensor with plastic housing for outdoor and industrial use
- TFA: Contact sensor with stainless steel sensor rod
- TFT / TFT(XL): Immersion sensor with brass sensor rod and immersion sleeve
- TFW: Room sensor with plastic housing for indoor use only
- TFK Duct sensor with plastic housing and stainless steel sensor rod
Technical Data
| Model Number |
A Permissible
Temperature range |
Protection
class |
Sensor Sleeve
/ Material |
Dimensions, mm |
Connection
cable length, m |
| DCV-TEMP-TFR |
-20 °C to +60°C |
IP54 |
- |
75W x 75H x 37D |
- |
| DCV-TEMP-TFR-E |
-20 °C to +60°C |
- |
- |
Built-in sensor of TFR |
- |
| DCV-TEMP-TFR-E |
-35 °C to +70°C |
IP20 |
- |
84W x 84H x 23.5D |
- |
| DCV-TEMP-TFT |
-20 °C to +105°C |
IP43 |
Ø7 x 50mm / Brass |
- |
1.9 |
| DCV-TEMP-TFT-XL |
-20 °C to +105°C |
IP43 |
Ø7 x 50mm / Brass |
- |
4.0 |
| DCV-TEMP-TFA |
-20 °C to +85°C |
IP67 |
Ø6 x 50mm / Stainless steel |
- |
2.0 |
| DCV-TEMP-TFK |
-50 °C to + 120 °C |
IP65 |
Ø7 x 135mm / Stainless steel |
50W x 65H x 44D |
- |
