Description

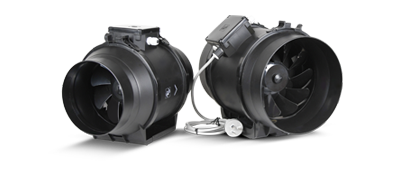

The fully adjustable TD-P EcoWatt inline fan, delivers an innovative and highly efficient EC solution for both domestic and commercial ventilation applications. The range features an on-board variable speed controller, along with provisions for BMS integration or external 0–10V control connections.

Suitable for mounting in any position, the range is available to suit standard duct sizes 150 and 200mm diameter.

Typical Application
Ideal for the ventilation of toilets, laundries, ensuites and kitchens for homes, hotels and commercial premises.

Features

An energy-efficient solution with state-of-the-art, brushless EC motor technology
Speed controllable via on-board potentiometer or external 0-10V signal
High-performance mixed-flow impeller
Fans can be removed for maintenance or repair without disturbing the duct system via specially designed support
All models are designed for direct connection to standard diameter circular ducting
Integral mounting foot makes installation simpler
Includes plug and lead for easy and quick installation
Suitable for both supply and exhaust air applications
• BMS compatible

Single Phase Models

Product Code	Diameter [mm]	Speed [rps]	kW	Amps	Avg. dB(A) @ 3m	Max Pressure [Pa]	Max Volume [m³/sec]
TD-150P-ECOWATT	150	43	0.04	0.3		230	0.17
TD-200P-ECOWATT	200	38	0.065	0.5		212	0.24
