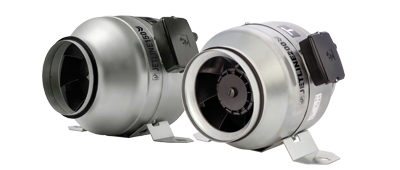

Jetline Series - Mixed-Flow Fans

Jetline Series - Mixed-Flow Fans

Description

The Jetline is a high performance, low profile in-line fan featuring silent-block motor mounting to reduce vibrations and lower the sound level of operation. The Jetline uses a quick fit mounting bracket for fast installations and is suitable for mounting in any position.

There are 6 models in the range matching standard duct sizes from 100 to 315mm diameter.

Typical Application
Designed for the ventilation of toilets, bathrooms, ensuites, laundries and kitchens in homes, hotels, apartments and commercial buildings. Suitable for both supply and exhaust air applications and the transfer of warm and cool air from one room to another.
Features
  • High performance patented centrifugal impeller.
  • Optimised impeller, guide vane and outlet diffuser for low noise operation.
  • Designed for direct connection to standard diameter circular ducting.
  • Low profile, durable outer casing manufactured from galvanised sheet steel.
  • Robust, galvanised steel quick fit mounting bracket for fast installations.
  • Can be mounted in any position.
  • Includes plug and lead for easy installation.

Single Phase Models

Product CodeDiameter
[mm]
Speed
[rps]
kWAmpsAvg.
dB(A)
@ 3m
Max.Pressure
[Pa] -Recom
Max.Volume
[m3/sec]

JETLINE-100

10045  0.019 0.1 35 188 0.07

JETLINE-125

12544  0.04 0.2 41 225 0.12

JETLINE-150

15046  0.083 0.4 46 401 0.21

JETLINE-200

20044  0.125 0.5 51 360 0.30

JETLINE-250

25045  0.16 0.7 53 450 0.35

JETLINE-315

31543  0.215 0.9 52 442 0.45
