Features
The DSS1-16, 3-speed mounted switch has been specifically
designed for the Ezifit In-Wall exhaust fan to switch between
high, medium and low speed.
The switch is surface mounted, has an enclosure rating of IP30
and has a 70W X 114H switch plate. A recess depth of 25mm is
required for mounting.

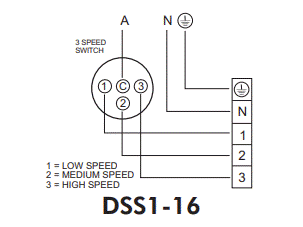

Wiring Diagram
No dimension data available.
