Features
Direct Wired
Type - VZ
The VZ run-on timer is designed to permit the supply of electricity to motors so they can continue to operate for a predetermined time.
They are designed to be mounted within equipment or enclosures.
They can be used with single or three-phase motors.
Warning
Check with our sales department before using a run-on timer with a VA controller.
Not to be used with fans with EC motors or inverters.
Technical Data
| Model Number |
Run-On Time |
Start Delay |
Max. Amps |
Dimensions, mm |
| VZ24C |
Up to 24 min* |
Up to 150 sec |
1.25** |
32W × 13H × 17D |
| VZ6 |
6 min |
50 sec |
1.25** |
32W × 13H × 17D |
| VZ12 |
12 min |
50 sec |
1.25** |
32W × 13H × 17D |
* 1.5 min increments
** Minimum amps: 0.075
Enclosure rating: IP40

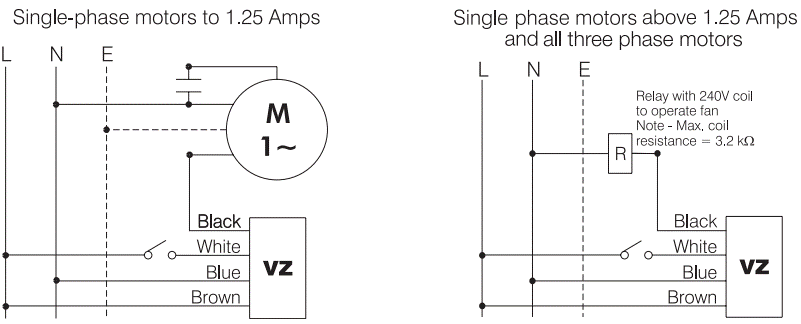

Wiring Diagram
Direct Wired Supply with Plug-in Outlet
Single Switch Input
Type - VZ-TS
The VZ2-10TS plug-in run-on timer is designed to permit the supply of electricity to motors so they can continue to operate for a predetermined time.
This unit is designed for single-phase fans with a 3-pin plug fitted. The mains connection is wired directly into the terminals of the run-on timer; no 4-pin outlet is required.
Run-on time is adjustable from 2–10 minutes.
Warning
Not to be used with fans with EC motors or inverters.
Technical Data
| Model Number |
Run-On Time |
Start Delay |
Max. Amps |
Enclosure Size, mm |
| VZ2-10TS |
2–10 min |
n/a |
5 |
153W × 110H × 60D |

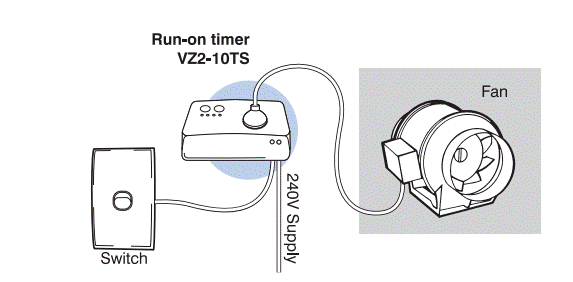

Suggested Wiring Arrangement
Direct Wired Supply with Plug-in Outlet
Multi-Switch Input
Type - VZM
The VZM0-28TS plug-in run-on timer
is designed to permit the supply of
electricity to motors so they can continue
to operate for a predetermined time.
This unit is designed for multiple switch
inputs to operate a single-phase fan
with a 3-pin plug. The mains supply
connection is wired directly into the
terminals of the run-on timer. No 4 pin outlet is required.
Run-on time is adjustable from 0-30 min
with a start delay of 0-5 min.
Can be used with VZ-INSE switch.
Warning
Not to be used with fans with EC motors or inverters.
Technical Data
| Model Number |
Run-On Time |
Start Delay |
Max. Amps |
Enclosure Size, mm |
| VZM0-28TS |
0–30 min |
0–5 min |
5 |
153W × 110H × 60D |

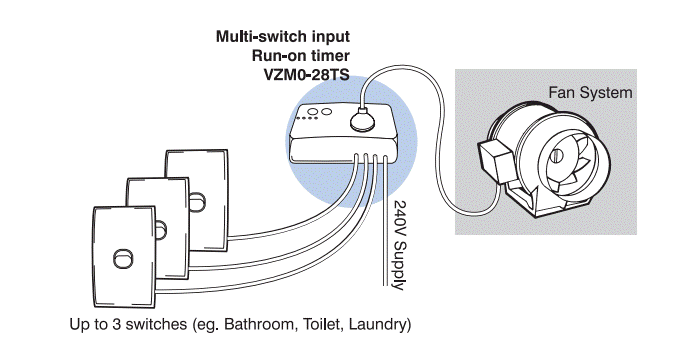

Suggested Wiring Arrangement
No dimension data available.
