Backdraft Shutters Type AS

Download Catalogue
Backdraft Shutters Type AS

Features

AS type units are air stream-operated shutters that are designed for surface mounting. Approximately 10Pa pressure is only required to fully open the blades. These shutters are weather-resistant, making them suitable for both internal and external applications.

  • Moulded in impact-resistant UV-stabilised plastic.
  • All AS units have a galvanised wire mesh guard fitted.
  • Units are screw fixing and suitable for mounting on vertical surfaces and generally used for exhaust applications.
  • Finished in a Traffic White frame and grey flaps.

Testing

Air flow tests based on ISO5801:2007

Selection Table
Ring Plate &
Vogue Series fans
RP/VCW
Duct mounted fans.
Suit duct dia. mm.
Shutter Model
202/4 125 AS20
150 AS20
200 AS20
252/4 250 AS25
302/4/6 300 AS35
354/6 AS40

The above are only typical selections, as the shutters may be used with other fan types or over openings having dimensions that generally conform to dimension C in the dimensions table.

Suggested Specifications

The air-operated shutters shall be of AS series as supplied by Fantech.

They shall be of low resistance design and have a pressure drop of approximately 10Pa.

Grilles shall be tested to ISO5801:2007

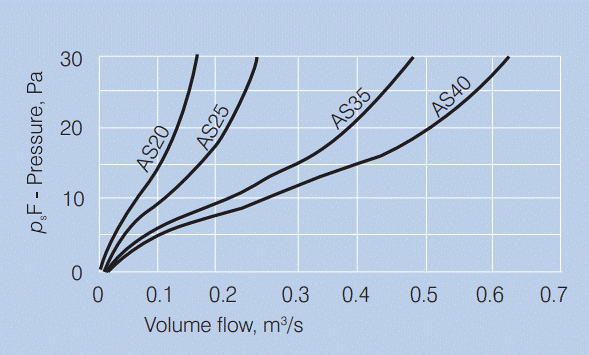

Pressure Loss Graph
Support Image

Dimensions

Dimension drawing for Backdraft Shutters Type AS
Product CodeABCDE
AS2026039200197182
AS2531440255250234
AS3542040360355338
AS4047240412405390
