Aviator Mini Controller

Download Catalogue

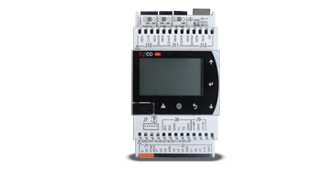

Aviator Mini Controller

Features

The compact Aviator MINI Controller is a tailored solution designed to efficiently manage small car park, sports stadiums and warehouse facilities ventilation to help maintain high standard of air quality. It has been developed to increase the energy efficiency of these facilities, while ensuring the air mixing and ventilation requirements are optimised.

Aviator MINI works in conjunction with mixing fans, pollutant sensors, VSDs, supply/Exhaust fans and Building Management Systems. The MINI controller can be factory configured to match your application requirements

  • AS1668.2 compliant atmospheric contaminant monitoring system
  • Connect up to 50 JetVent fans or mixer fans
  • Connect up to 16 Danfoss VLT Drives
  • Connect up to 20 Fieldbus Sensors
  • Connect to up to 5 expansion modules
  • Connect to either the 4.3” or large 7” touch screen graphic user interface (GUI)
  • Can be connected to a BMS for easy system monitoring; Modbus or BACnet using either Ethernet or RS485
  • Connects to fire panel (FDCIE) for general fire alarm and On/Auto/Off mode of operation for mixers or all fans
  • 6 demand zones and one fire zone operation
  • Integrated Smoke detection system for quick shut down
  • Purge timer with real time clock and run indicator alarm
  • Includes a 20 program scheduler
  • Relays for alarms, run indication, level control and enable
Standard I/O
  • 8 x Digital inputs
  • 6 x Digital outputs
  • 4 x Analogue inputs
  • 3 x Analogue outputs (relay)
Ports
  • Modbus to touchscreen
  • 1 x Ethernet port
  • Modbus to fan and drives

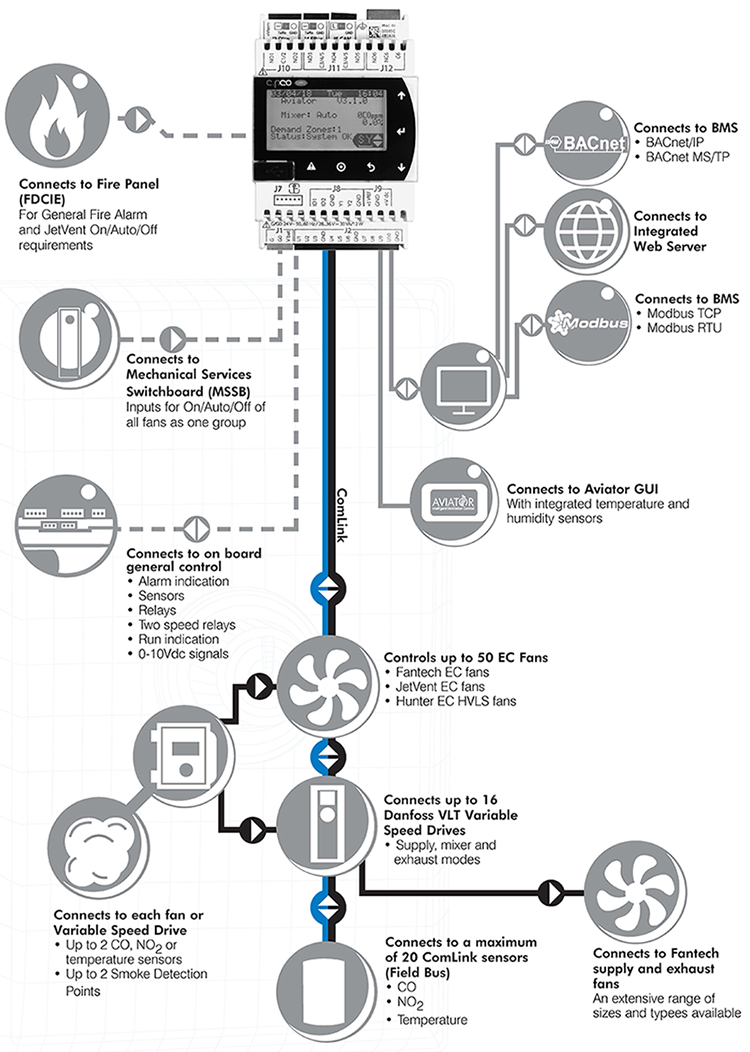

Aviator Mini Control System Layout

Aviator MINI

Dimensions

Dimension drawing for Aviator Mini Controller
Product CodeABCD
DCV-CU-MINI1 706011045
