Aviator Mini Controller

Aviator Mini Controller


The compact Aviator MINI Controller is a tailored solution designed to efficiently manage small car park, sports stadiums and warehouse facilities ventilation to help maintain high standard of air quality. It has been developed to increase the energy efficiency of these facilities, while ensuring the air mixing and ventilation requirements are optimised.

Aviator MINI works in conjunction with mixing fans, pollutant sensors, VSDs, supply/Exhaust fans and Building Management Systems. The MINI controller can be factory configured to match your application requirements

  • AS1668.2 compliant atmospheric contaminant monitoring system
  • Connect up to 50 EC mixing fans
  • Connect up to 16 Danfoss VLT Drives
  • Connect up to 20 Fieldbus Sensors
  • Connects to either 4.3” or large 7”Aviator touch screen graphic user interface GUI
  • Connects to BMS for easy system monitoring; Modbus or BACnet
  • 1 mechanical switch board connections for Supply/Mixer/ Exhaust fan groups with On/Auto/Off modes of operation
  • 6 demand zones and one fire zone operation
  • Integrated Smoke detection system for quick shut down
  • Purge timer with real time clock and run indicator alarm
  • Includes up to 20 program schedules
  • Relays for alarms, run indication, level control and enables

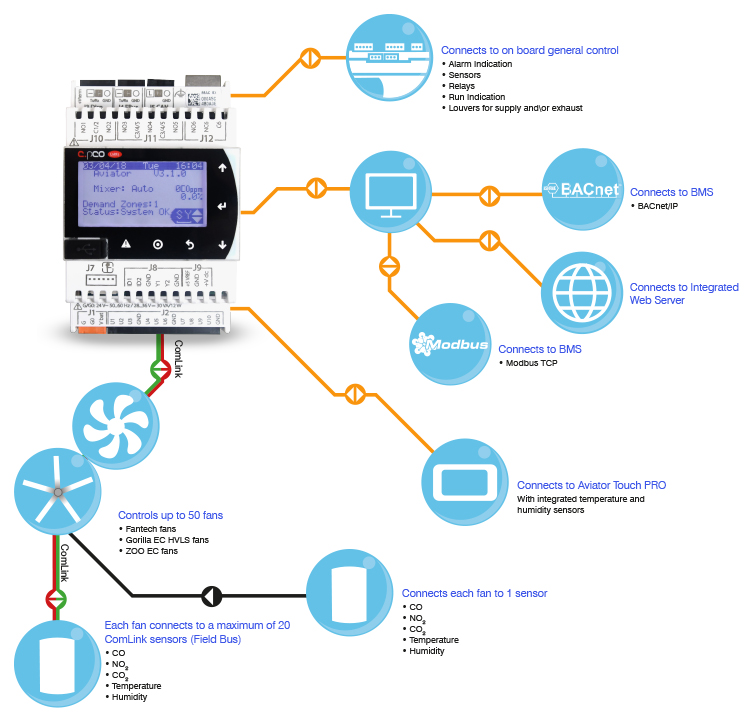

Aviator Mini Control System Layout

Aviator MINI
