Features
The air velocity range of sensors has been specially optimised for non-aggressive gaseous mediums. The measuring head can be positioned within the duct in any direction. Velocity sensor is available in as 2 options; with a Ø12 x 200mm adjustable extension and with a 2 metre sensor cable.
- Very high measuring accuracy from 0.15m/s.
- Output of 0 - 10V or 4 - 20mA, proportionally over the respective measuring range.
- Easy to mount using the mounting flange included
- Requires 24V supply from control unit.
- Measuring range and response time can be selected by altering the jumper settings.
Technical Data
| Model Number |
Protection Class |
Sensor Head
(W x H x D) (mm) |
Sensor Cable (mm) |
Sensor Cable (mm) |
Velocity Range (mm) |
| DCV-AV-MAL1 |
IP65 (Head IP20) |
80 x 80 x 35 |
Ø12 x 200 |
- |
0-2m/s |
| DCV-AV-MAL1X |
IP65 (Head IP20) |
80 x 80 x 35 |
- |
2000 |
0-2m/s |
| DCV-AV-MAL10 |
IP65 (Head IP20) |
80 x 80 x 35 |
Ø12 x 200 |
- |
0-2m/s |

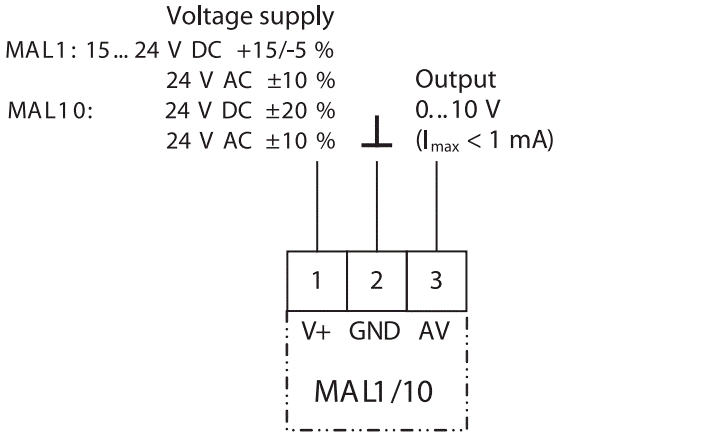

Wiring Diagram
No dimension data available.
