Features
4-Pin Plug Supply with Plug-in Outlet
Type - VZ-PL
The VZ6-4PL plug-in run-on timer
is designed to permit the supply of
electricity to motors so they can continue
to operate for a predetermined time.
This unit is designed for single-phase
fans fitted with a 3-pin plug. The VZ6-4PL
has a 900mm lead and 4-pin plug for
connection to a 4-pin outlet.
Run-on time is fixed at 6 minutes.
Warning
Not to be used with fans with EC motors or inverters.
Technical Data
| Model Number |
Run-On Time |
Start Delay |
Max. Amps |
Enclosure Size, mm |
| VZ6-4PL |
6 min |
n/a |
5 |
153W × 110H × 60D |

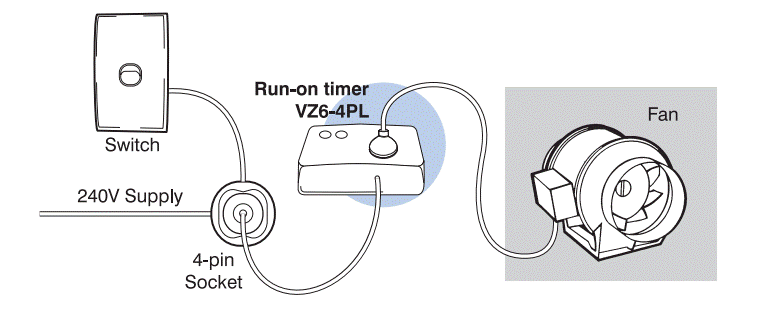

Suggested Wiring Arrangement
No dimension data available.
