Features
The PGL backdraft shutter is designed for external mounting.
It is made from impact resistant UV-stabilised PVC and
includes shutters that open when the fan is running and close
when it is off. Available in 100, 125 and 150mm spigot sizes.
Suitable with a large range of wall mounted and in-line fans.
Suggested Specification
The backdraft shutter shall be of the PGL series as supplied
by Fantech and be of the model number shown on the
schedule/drawing. It shall be manufactured from injection
moulded UV stabilised PVC.
Testing
Air flow tests based on ISO5801:2007.
Selection Table
Wall
Fan Model |
VentMajor
Model |
Silent
EcoWatt
MixVent
In-line Fan Model |
ProVent
In-line Fan Model |
JetStream
In-line Fan Model |
PGL
backdraft shutter |
| EDM-100C |
VM-100L |
TD-250/100... |
RIL-100 |
- |
PGL100 |
| EDM-200C |
VM-125L |
TD-350/125... |
RIL-125 |
- |
PGL125 |
| EDM-300C |
VM-150L |
TD-500/150... |
RIL-150SW / RIL-150TSW |
JCE152 |
PGL150 |

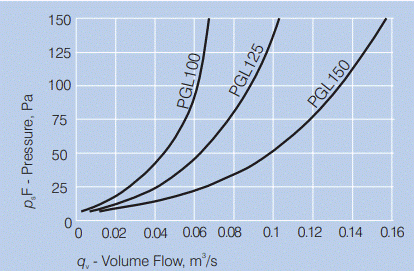

Pressure Loss Graph

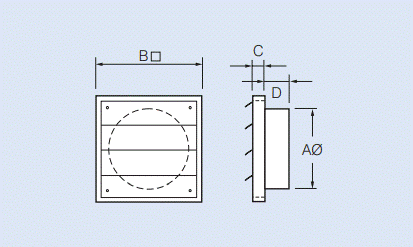

Dimensions
| Product Code | A | B | C | D |
|---|
| PGL100 | 100 | 155 | 15 | 25 |
| PGL125 | 125 | 155 | 17 | 28 |
| PGL150 | 150 | 185 | 15 | 35 |
