Features
The VZ-ISNSE is a 240V AC power
sense switch that provides automatic
on/off control of a fan or exhaust fan
system. The unit detects the current of
an appliance such as a clothes dryer,
closing and opening the switched
output relay when the load sense range
parameters are met. The LC version is for
sensing low current appliances such as
range hoods.
Can be used with the VZ2-10TS,
VZM0-28TS, VZ6-4PL or as a stand
alone unit.
LED’s indicate when load is activated.
Warning
Not to be used with fans with EC motors or inverters.
Technical Data
| Model Number |
Load Sense Range |
Switched Output Max. Amps |
Enclosure Size, mm |
| VZ-ISNSE |
On = 2.5 – 15 amp
Off = 0 – 1.5 amps |
5 |
153W × 110H × 60D |
| VZ-ISNSE-LC |
On = 0.5 – 2.0A
Off = 0 – 0.35A |
5 |
153W × 110H × 60D |

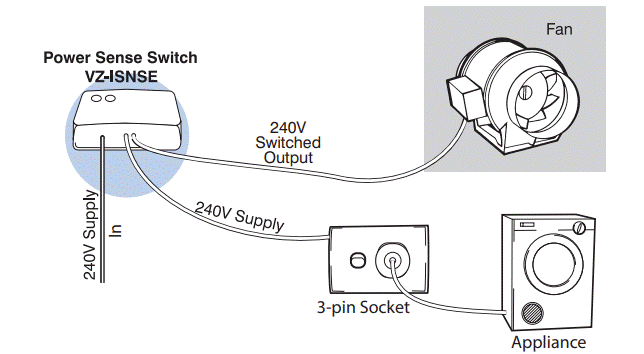

Suggested Wiring Arrangement
